YS5120 Φ200mm CNC Internal External Gear Shaping | RFQ Sourcing Details
Cnc Machining Centers · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Product specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Cnc Machining Centers. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
YS5120 4-axis CNC Gear Shaper Shaping Machine Quick Look Maker Type: State-owned Maker of China Machine Type: High-speed & 4-aixs & CNC Vertical Shaping Max. Workpiece Diameter: Φ200mm Max.
Modules: 4 Typical Fast Spindle Stroke 1750 strokes/min Axes Under CNC Control: 4 X-axis: radial feeding C1-axis: cutter spindle rotating C2-axis: worktable rotating Z-axis: cutter spindle stroke CNC System Siemens 828D Main Technical Parameter Technical item Data Unit Maximum diameter of external gears 200 mm Maximum diameter of internal gears (installation diameter at 400mm) 60+cutter dia.
mm Maximum modulus of workpiece 4 mm Maximum width of gear to be machined 30 mm Maximum stroke length 40 mm Stroke speed of spindle 400~1750 /min /min Diameter of spindle 85 mm Distance between spindle end face and work table surface (heightened: opt.) 205~255 mm Distance between cutter centerline to worktable centerline -30~200 mm Diameter of worktable surface 260 mm Diameter of swivel worktable surface (optional) 240 mm Diameter of worktable hole 120 mm Back-off valve at highest position of cutter spindle > 0.32 mm Offset of column for inclined back-off of cutter ±20 mm Radial feeding amount (stepless) 0.001~0.2 mm/stroke Maximum rotating speed of worktable when rapid rotating 16 rpm Total power of motors 20.85 kW Rated output power of main motor 5.5 kW Overall dimensions of machine (Length x Width x Height) 3080x2870x2200 mm Net weight 6400 kg Brief Introduction YS5120CNC is a precision 4-axis CNC Gear Shaping Machine, having following main technical features: 1.
High productivity: the hydrostatic guideways and hydrostatic bearing are applied for the toolpost structure of this machine to meet the high-speed stroke needs. 2. Excellent stiffness: the machine fulfills the radial cutting motion by column movement along bed and the back-off motion by oscillating tool post.
The bed is a foundation component double-wall structure made of high-density cast gray iron, featuring excellent thermal stability, and is installed with injection molded guideways to remarkably reduce the friction coefficient of radial motion.
Short drive chain, the high-precision beveloid worm gear pairs are applied for the toolpost and worktable. 3. Low vibration and noise of machine: This machine is designed with novel double-cam mechanism, featuring the advantages in following: The tool post weight is remarkable
YS5120 | Applications and Buyer Notes
YS5120 is organized as a sourcing-ready Cnc Machining Centers reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time ques
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- CNC Machining CentersBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Type
- Gear Shaping MachineBased on visible page data; confirm exact value in the RFQ.
- power
- of main motor 5.5 kW Overall dimensions of machine (Length x Width x Height) 308Based on visible page data; confirm exact value in the RFQ.
- Origin
- ChinaBased on visible page data; confirm exact value in the RFQ.
- Voltage
- 220/380/440/460V...3pHBased on visible page data; confirm exact value in the RFQ.
- Warranty
- 13 Months Since Leaving FactoryBased on visible page data; confirm exact value in the RFQ.
- diameter
- at 400mm) 60+cutter dia. mm Maximum modulus of workpiece 4 mm Maximum width of gBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Machining Centers categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 10pcs Tnmg160404l R Cnc Lathe Turning Inserts Cermet Inserts Tnmg For SteelThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 4 Axis Small Cnc Milling Machine Vmc850 Vertical Machining Center Cnc Vertical Machining CenterThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 4 Multi Spindles 3 Heads Dsp Vacuum Table Mdf Cutting Furniture Cabinet Atc 3d Wood Working 1325 2This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Axis Cnc Vertical Machining Center Vmc Model Ysv 1060This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Axis Large High Perform Cnc Controller Vertical Milling Machining Center Vmc960This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Axis Vmc215 Small Mini Cnc Milling Machine Vertical Machining Center Cnc Vertical Machining CentThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Lathes And Turning categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Milling Drilling And Grinding categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Machine Suppliers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Lathe Exporters sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Machining Center Manufacturers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Tooling Fixtures And Accessories categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.

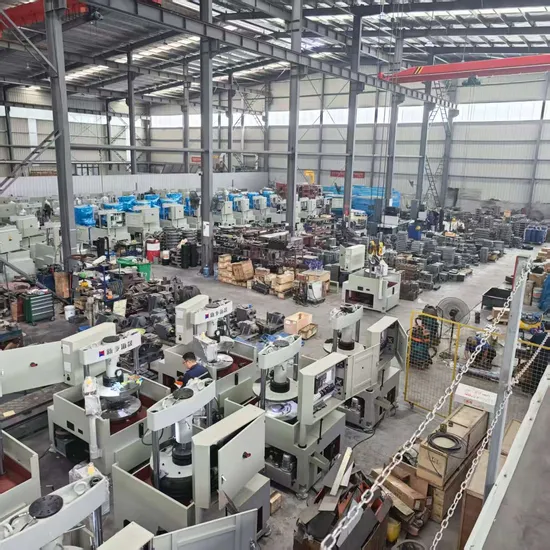

Multi-Axis CNC Bearing Internal Bore Diameter Machining Center for Aerospace Turbines - CNC InternalRequest Quote
