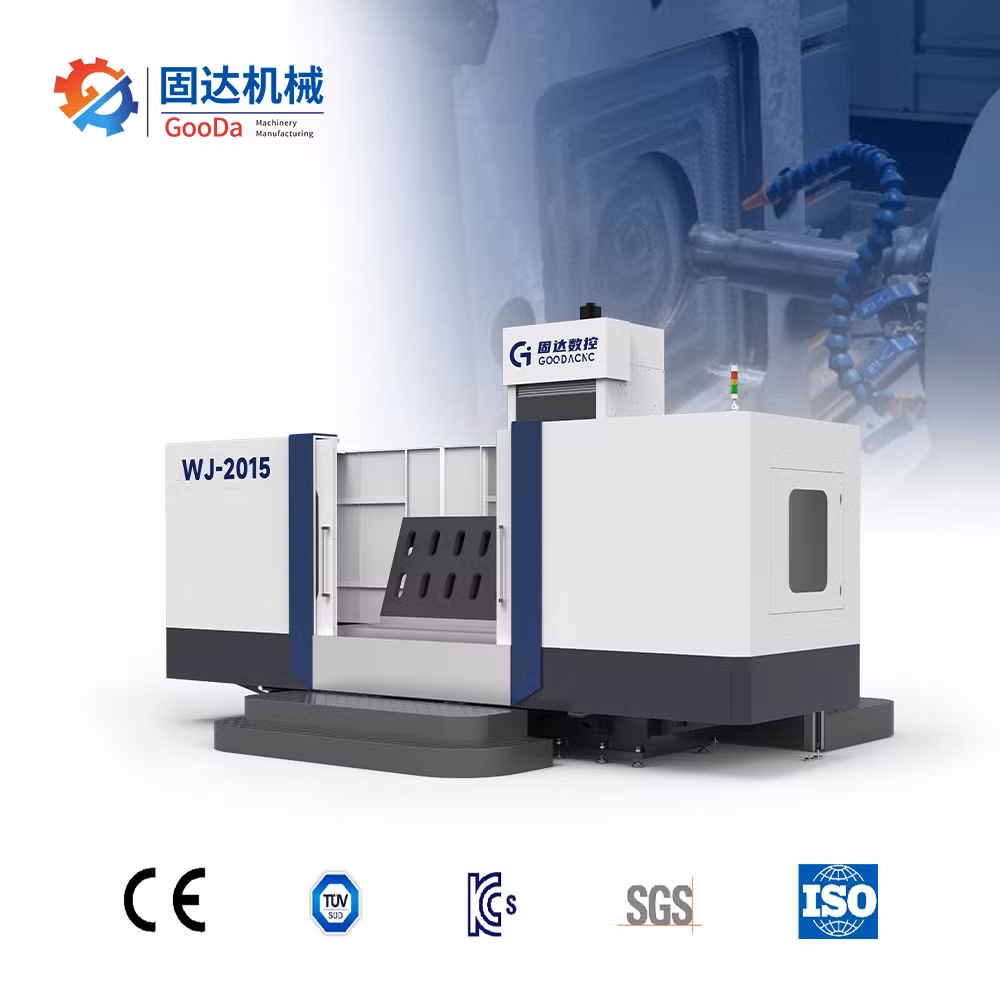

The WJ-2015 is a heavy-duty CNC horizontal machining center intended for metal-cutting operations such as roughing and semi-finishing. Its inverted T-type bed and moving-column arrangement are designed to support large, heavy workpieces. Published travel is 2000 mm on X, 1500 mm on Y, and 850 mm on Z.

The worktable measures 2000 × 1300 mm and has a stated maximum load capacity of 15,000 kg. Machine configuration The Y-axis uses a double-wall moving column, while the complete column moves along the Z-axis.

The listed construction includes HT-300 cast iron for the column, secondary annealing treatment, two extended heavy-duty 55# roller linear guides, a nitrogen balancing system for the spindle box, and a semi-enclosed protective cover.

The spindle is paired with a 22 kW high-torque motor and is described with selectable maximum speeds of 3000 or 6000 rpm. A spindle cooling system is also listed. Feed, accuracy, and utilities Published rapid feed rates are 10/10/10 mm/min for the X/Y/Z axes, with maximum cutting feed rates of 8/8/8 mm/min.

Stated positioning accuracy is 0.02/1000 mm, and stated repeat positioning accuracy is 0.015/1000 mm. The machine requires AC 380 V ±10%, has 50 kW listed total power, and requires 0.6–0.8 MPa air pressure. Lubrication oil tank capacity is 4 L.

Installation and procurement considerations The listed machine footprint is 5000 × 5355 mm, and net weight is 20,000 kg. Buyers should plan foundation, lifting, access, electrical service, compressed-air supply, chip handling, coolant management, and operator clearance around the final configuration.

Packaging is described as an inner PE cover with a plywood box and steel-beam frame, although alternative packing methods may be available.

Before ordering, confirm whether the published feed units and accuracy notation match the final technical quotation, as these values should be checked against the intended cycle time and tolerance requirements.

Also confirm the selected spindle speed, CNC control, tooling interface, tool magazine, coolant system, chip conveyor, guarding scope, workholding provisions, and included accessories. Available CNC control options are stated to include FANUC, SIEMENS, and MITSUBISHI, with the final system depending on selection.

Customization is available. The stated minimum order is one set, with a 12-month warranty. Conventional machines have a stated delivery period of 30–45 working days after receipt of deposit, while special machines may require longer.

Buyers should obtain a configuration-specific acceptance document covering machining trials, accuracy inspection, training, installation responsibilities, packaging, and delivery schedule before committing to an order.
