VMC1160 4-Axis BT40 Vertical CNC Machining Center | RFQ Sourcing Details
Cnc Machining Centers · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Quote on requestProduct specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Cnc Machining Centers. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
Product overview The VMC1160 is presented as a four-axis vertical CNC machining center for metal-cutting operations. Its specified working envelope combines X/Y/Z travels of 1100 × 600 × 600 mm with a 1200 × 600 mm table and a maximum worktable load of 1000 kg.
The machine structure is described as HT300 cast iron, while all three linear axes use linear guideways. Spindle and machining system The machining center is equipped with a BT40 spindle rated for a maximum speed of 8000 rpm and an 11 kW main motor.
The listed rapid traverse rates are 24 m/min on X, 24 m/min on Y, and 20 m/min on Z. Cutting feed is specified from 1 to 8000 mm/min. The distance from the spindle axis to the column surface is 650 mm, and the specified spindle-nose-to-table range is 120–720 mm.
Tool handling and standard equipment A 24-position arm-type tool magazine is listed, with a stated tool-change time of 2–3 seconds. Maximum tool diameter is specified as 78 mm, or 120 mm under the stated alternate condition, and maximum tool weight is 8 kg.
Listed equipment includes automatic centralized lubrication, strong chip flushing, air and water guns, an electrical-cabinet air conditioner, an air-storage tank, a BT40 milling chuck, and a locking knife block. A chip conveyor is described as optional.
Control and accuracy The standard control options are listed as GSK 25i or KND 1000, using closed-loop linear control. Stated figures include positioning accuracy of 0.0075 mm, repeat positioning accuracy of 0.005 mm, and processing precision of 0.03–0.04 mm.
Each machine is described as undergoing laser-interferometer and ballbar testing.
Buyer confirmation points Before ordering, confirm whether the fourth-axis assembly, rotary table, drive, and control interface are included in the quoted configuration, because the detailed axis specifications principally describe the three linear axes.
Confirm the selected CNC control, exact tool-magazine configuration, spindle and guideway brands, electrical supply, and all standard versus optional accessories.
Warranty information in the available specifications is inconsistent, with both 13-month and 18-month periods stated, so obtain the applicable written warranty terms.
Buyers should also request model-specific accuracy inspection records and copies of any required product certificates rather than assuming every listed certification applies to the exact ordered configuration.
Confirm final machine dimensions, shipment weight, packaging, installation requirements, commissioning scope, training, spare-parts package, and acceptance procedure before purchase.
VMC1160 | Applications and Buyer Notes
VMC1160 is organized as a sourcing-ready Cnc Machining Centers reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time que
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- CNC Machining CentersBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Model
- VMC1160Based on visible page data; confirm exact value in the RFQ.
- T-slots
- 5 slots, 18 mm width, 100 mm pitchBased on visible page data; confirm exact value in the RFQ.
- Table size
- 1200 × 600 mmBased on visible page data; confirm exact value in the RFQ.
- Cutting feed
- 1–8000 mm/minBased on visible page data; confirm exact value in the RFQ.
- Machine type
- Vertical CNC machining centerBased on visible page data; confirm exact value in the RFQ.
- X/Y/Z travel
- 1100 × 600 × 600 mmBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Machining Centers categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Lathes And Turning categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Milling Drilling And Grinding categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Tooling Fixtures And Accessories categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Procurement sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Machine Suppliers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 10 Off Good Quality Vertical Machining Center Vmc850 3 Axis Cnc Vertical Machining Center For SaleThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Lathe Exporters sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Machining Center Manufacturers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path CompanyThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 4 Axis Small Cnc Milling Machine Vmc850 Vertical Machining Center Cnc Vertical Machining CenterThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Axis Large High Perform Cnc Controller Vertical Milling Machining Center Vmc960This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Axis Vmc215 Small Mini Cnc Milling Machine Vertical Machining Center Cnc Vertical Machining CentThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
VMC650 3-Axis Vertical CNC Machining Center with BT40 Spindle and 24-Tool MagazineRequest Quote
VMC650 3-Axis Vertical CNC Machining Center with BT40 SpindleRequest Quote
VMC650 3-Axis CNC Vertical Machining Center with 900 × 400 mm TableRequest Quote
TAIZ TZ-U320 Vertical 5-Axis CNC Machining Center with 320 mm Rotary TableRequest Quote

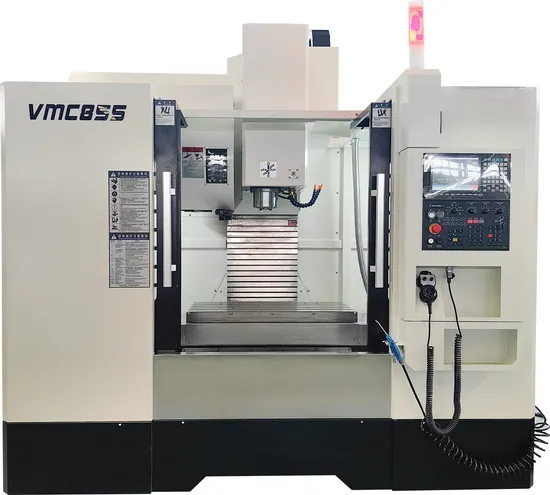

JT VMC855V Heavy-Duty 3-Axis Vertical CNC Machining CenterRequest Quote
