PL1816 1.8 m CNC Gantry Milling Machine | RFQ Sourcing Details
Cnc Machining Centers · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Product specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Cnc Machining Centers. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
The PL1816 is a CNC gantry milling machine designed for metal-cutting work. Its configuration uses linear movement and closed-loop CNC control, with a stated processing precision of 0.01–0.02 mm.
The machine has a 1,400 × 1,700 mm worktable, 1,800 mm X-axis travel, 1,700 mm Y-axis spindle-slide travel, and 800 mm vertical Z-axis spindle travel. The gantry width is 1,650 mm. The stated door height, measured from the worktable to the column base, is 1,080 mm.
Spindle-nose-to-worktable distance is listed as 100–900 mm. The worktable includes seven T-slots, each specified as 22 mm with 200 mm spacing. Approximate worktable load capacity is 3 tonnes, and approximate machine weight is 15 tonnes.
The specification lists a BT50 spindle configuration with a 190–6,000 range, Taiwan HIWIN RGH45 or YTN MSR45 roller-guide options for the X/Y and Z axes, and HIWIN or YTN ball-screw options. The Z-axis counterweight is described as a double-acting balancing cylinder.
Recommended three-phase servo motor torque is listed as X: 40 N·m, Y: 30 N·m, and Z: 30 N·m. Overall machine dimensions are listed as 3,690 × 2,770 × 4,020 mm. Customization is indicated as available, and the listed warranty period is one year.
Before procurement, confirm the final spindle make and configuration, guide and ball-screw selection, servo-motor arrangement, actual dimensional tolerances, worktable loading conditions, electrical requirements, included tooling and accessories, customization scope, inspection procedure, packaging, delivery arrangements, installation support, and warranty terms for the exact machine configuration.
PL1816 | Applications and Buyer Notes
PL1816 is organized as a sourcing-ready Cnc Machining Centers reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time ques
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- CNC Machining CentersBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Model
- PL1816Based on visible page data; confirm exact value in the RFQ.
- Application
- Metal process;metal-cutting CNC machine tBased on visible page data; confirm exact value in the RFQ.
- Gantry width
- 1,650 mmBased on visible page data; confirm exact value in the RFQ.
- Machine type
- CNC gantry milling machineBased on visible page data; confirm exact value in the RFQ.
- Customization
- Available according to the supplied product informationBased on visible page data; confirm exact value in the RFQ.
- X-axis travel
- 1,800 mmBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 10 Off Good Quality Vertical Machining Center Vmc850 3 Axis Cnc Vertical Machining Center For SaleThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Procurement sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Machining Centers categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Milling Drilling And Grinding categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Lathes And Turning categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Tooling Fixtures And Accessories categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path CompanyThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Bl V8 Bl V11 Vertical Cnc Machining Centers With Bt40 Spindle And 24 Tool AtcThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Borui Vmc650 3 Axis Cnc Vertical Machining Center With Bt40 SpindleThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 4 Axis Small Cnc Milling Machine Vmc850 Vertical Machining Center Cnc Vertical Machining CenterThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Axis Large High Perform Cnc Controller Vertical Milling Machining Center Vmc960This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Axis Vmc215 Small Mini Cnc Milling Machine Vertical Machining Center Cnc Vertical Machining CentThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 5 Axis Cnc Machining Center Professional Cnc Lathe ManufacturersThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
PM2560H Vertical CNC Double-Column Gantry Milling and Boring Machining CenterRequest Quote
SKX Series CNC Double-Column Gantry Milling and Boring Machining CenterRequest Quote
SKX Series CNC Gantry Plano Milling and Boring Double-Column Machining CenterRequest Quote
CNC Double-Column Gantry Milling and Boring Machining CenterRequest Quote
FUKEDA FD3018 CNC Gantry Machining Center with 1600 × 3000 Table and BT50 SpindleRequest Quote

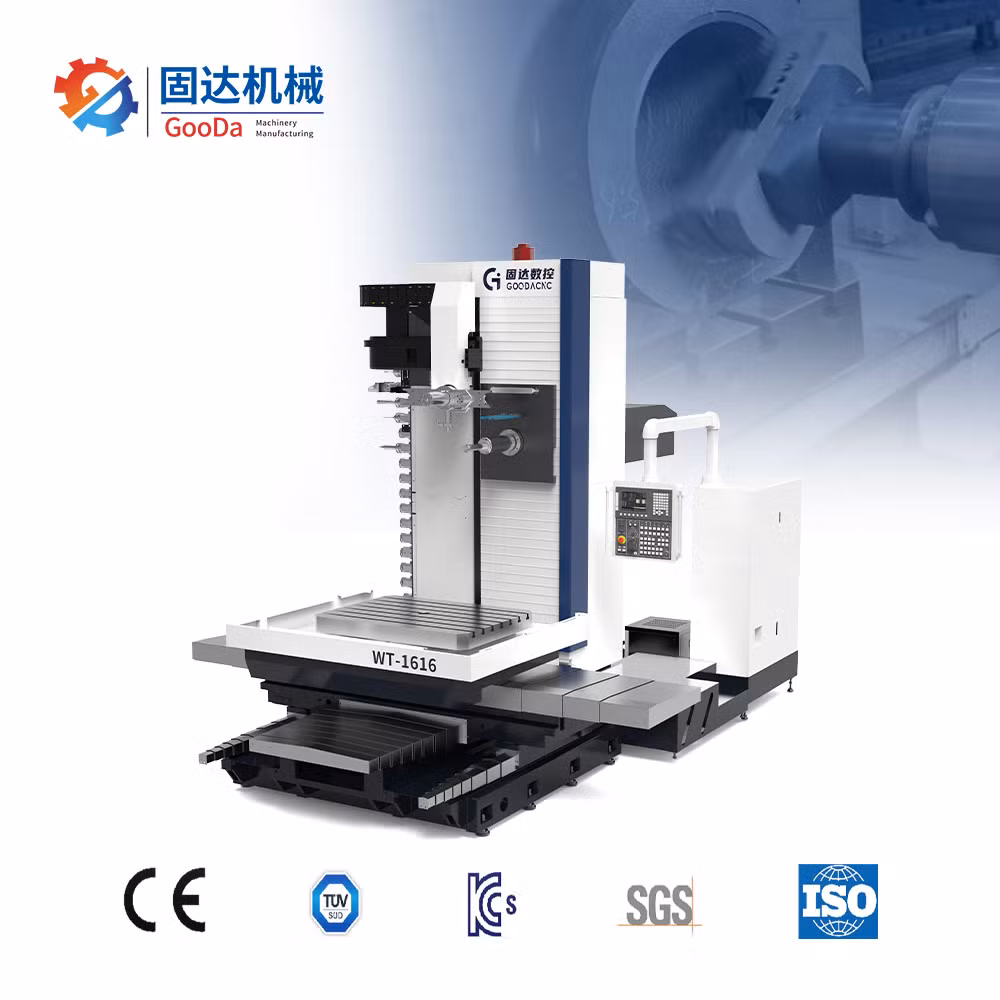

WT-1616 CNC Horizontal Boring and Milling Machining CenterRequest QuoteCNCMillHub related sourcing paths
