JZ-855-12 3-Axis CNC Drilling and Milling Machini | RFQ Sourcing Details
Cnc Machining Centers · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Quote on requestProduct specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Cnc Machining Centers. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description

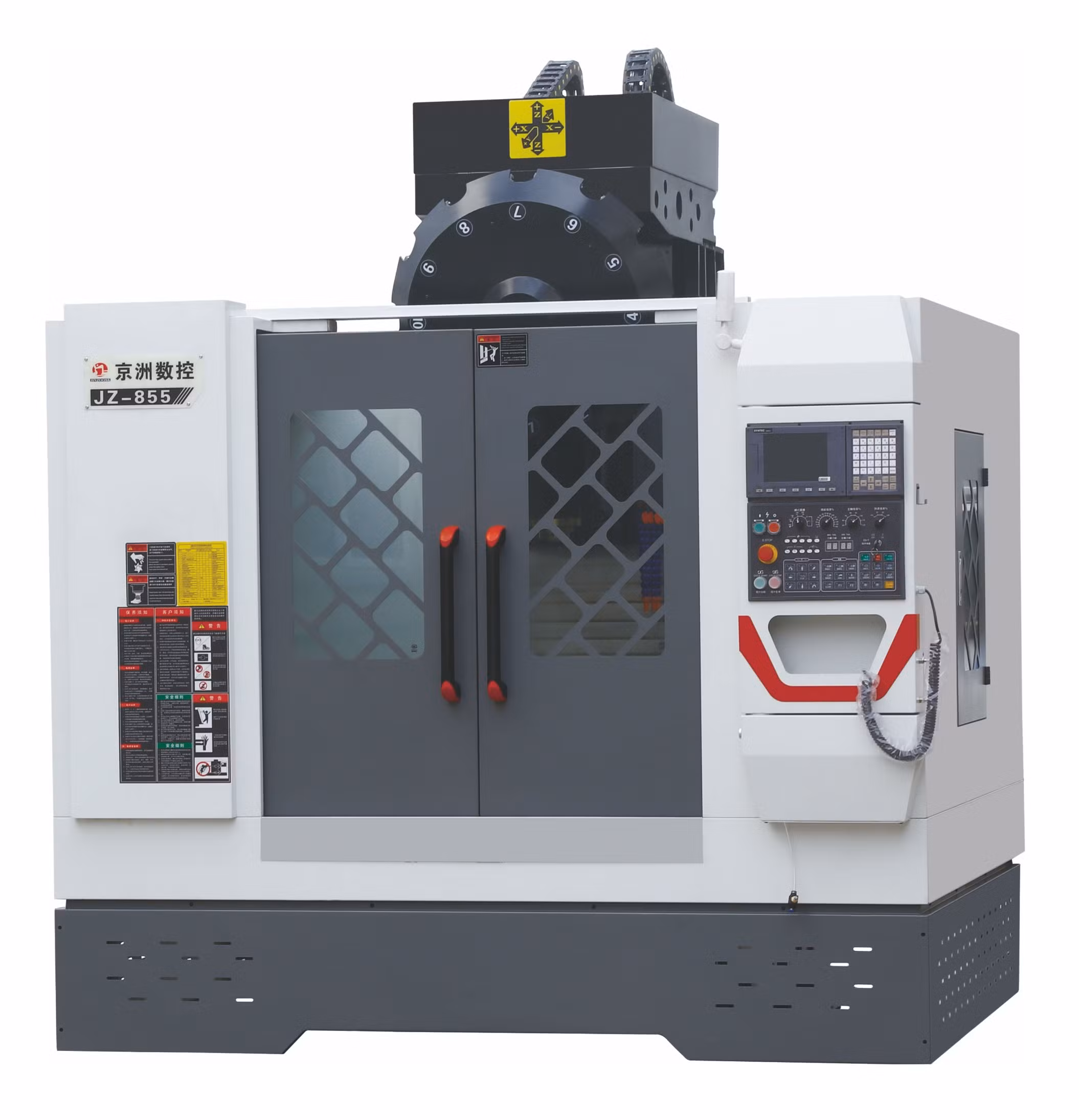

The JZ-855-12 is a three-axis CNC drilling and milling machining center intended for processing small and medium-sized metal parts, including components with complex shapes and demanding repeatability requirements. The machine uses point-to-point movement and closed-loop CNC control.
Listed operations include milling, drilling, and tapping. The worktable measures 1200 × 500 mm and has three 18 mm T-slots on a 175 mm pitch. Its stated maximum load is 400 kg. Axis travel is 800 mm in X, 550 mm in Y, and 420 mm in Z, with rapid movement of 30 m/min on all three axes.
The listed feed rate is 10,000 mm/min, and the distance from the worktable to the spindle end face is 150–550 mm. The spindle uses a BT40 taper. The standard spindle figures are listed as 8,000 rpm and 7.5 kW, while 12,000 rpm, 3,500 rpm, and 11 kW also appear as configuration alternatives.
Buyers should confirm which spindle speed and power combination applies to the quoted machine. The automatic tool changer is listed with 12 tools, with 16- and 21-tool alternatives shown. Knife-to-knife tool-change time is stated as 1.2 seconds.
The machine structure is described as high-strength resin-sand casting with a wide guide-rail base. It uses a 3210/4010 double-nut ball screw driven by an AC servo motor and includes an RS232 communication interface.
Listed repeatability is ±0.003 mm, while the broader processing-precision classification is 0.01–0.02 mm. Maximum stated capacities are 35 or 50 mm for drilling, 24 or 27 mm for tapping, and 120 mm for milling cutters;the applicable values depend on configuration and should be verified.
The machine is listed at approxima /cm². It is offered as a new machine with customization available, CE and ISO 9001 certification listed, and a one-year warranty and after-sales service period.
Before procurement, confirm the exact machine layout and whether the offered unit matches the stated drilling-and-milling-center configuration.
Request a configuration sheet covering the CNC control, spindle package, tool-magazine capacity, ball-screw selection, servo motors, electrical supply, air requirements, accuracy test method, included tooling, and optional equipment.
Buyers should also confirm acceptance criteria using their own part drawings, materials, tolerances, cycle requirements, and required drilling, tapping, and milling capacities.
JZ-855-12 | Applications and Buyer Notes
JZ-855-12 is organized as a sourcing-ready Cnc Machining Centers reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time q
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- CNC Machining CentersBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Model
- JZ-855-12Based on visible page data; confirm exact value in the RFQ.
- Control
- CNC, closed-loop, point-to-point movementBased on visible page data; confirm exact value in the RFQ.
- T-slots
- 3 slots;18 mm width;175 mm pitchBased on visible page data; confirm exact value in the RFQ.
- Condition
- NewBased on visible page data; confirm exact value in the RFQ.
- Feed rate
- 10,000 mm/minBased on visible page data; confirm exact value in the RFQ.
- Axis travel
- X 800 mm;Y 550 mm;Z 420 mmBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
