Antishi Contour Control EDM CNC Machining Center | RFQ Sourcing Details
Cnc Machining Centers · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Product specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Cnc Machining Centers. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
The TCK Series High Precision CNC Turning Center Slant Bed product is a semi-closed slant-bed turning and milling machine with X, Y, Z and C axes servo control. The structure and external dimensions are compact and reasonable. The spindle (C axis) is driven by a servo motor.
It can realize the turning of the outer circle, the end surface and the thread of various materials, such as shafts and discs, and various surface milling and drilling in radial and axial directions, and is suitable for efficient machining of small parts. Product Parameters Specifications Unit TCK6340 Max. swing dia.
over bed mm 400 Max. swing dia. over slide mm 140 Max. processing length mm 200(Gang type ) Max. bar capacity mm 45 Max.
processing diameter of plate type work piece mm 400 Spindle nose A2-5 Diameter of spindle through hole mm 56 Spindle speed range r/min 50-3500 Spindle shift mode Step - less speed regulation Motor power of spindle kw 5.5 Chuck form Hydraulic clamping head Hydraulic chuck Chuck size Inch 8 X axis rapid traverse m/min 24 Z axis rapid traverse m/min 24 X axis servo motor torque N.m 6 Z axis servo motor torque N.m 6 X axis travel mm 400 Z axis travel mm 300 Guide way type linear guide rail Tool post form Gang type tool post Tool shank size (square cutting tool/boring cutting tool) mm 20x20/Ø25 Total rated power kw 10 Total rated current A 21 Net weight kg 2300 Machine dimension(L×W×H) mm 2200×1530×1780 Standard accessories: GSK CNC controller Taiwan linear guide way 8 inch hydraulic chuck 8 station hydraulic turret
Antishi | Applications and Buyer Notes
Antishi is organized as a sourcing-ready Cnc Machining Centers reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time que
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- CNC Machining CentersBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- size
- (square cutting t /boring cutting t ) mm 20x20/Ø25 Total ratedBased on visible page data; confirm exact value in the RFQ.
- type
- t post T shankBased on visible page data; confirm exact value in the RFQ.
- power
- kw 10 Total rated current A 21 NetBased on visible page data; confirm exact value in the RFQ.
- weight
- kg 2300 Machine dimension(L×W×H) mm 2200×1530×1780Based on visible page data; confirm exact value in the RFQ.
- capacity
- mm 45 Max. processingBased on visible page data; confirm exact value in the RFQ.
- diameter
- of plateBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Machining Centers categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 10pcs Tnmg160404l R Cnc Lathe Turning Inserts Cermet Inserts Tnmg For SteelThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 4 Axis Small Cnc Milling Machine Vmc850 Vertical Machining Center Cnc Vertical Machining CenterThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 4 Multi Spindles 3 Heads Dsp Vacuum Table Mdf Cutting Furniture Cabinet Atc 3d Wood Working 1325 2This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Axis Cnc Vertical Machining Center Vmc Model Ysv 1060This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Axis Large High Perform Cnc Controller Vertical Milling Machining Center Vmc960This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Axis Vmc215 Small Mini Cnc Milling Machine Vertical Machining Center Cnc Vertical Machining CentThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Lathes And Turning categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Milling Drilling And Grinding categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Machine Suppliers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Lathe Exporters sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Machining Center Manufacturers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Tooling Fixtures And Accessories categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.

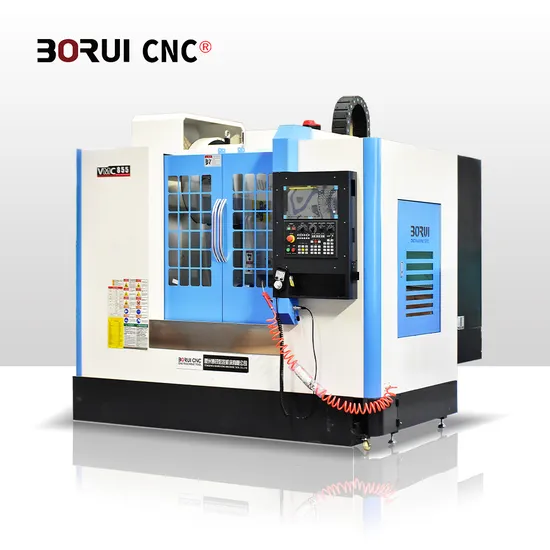

Vmc850 CNC Milling Machine with Siemens Control System for High-Speed CNC Vertical Machining CenterRequest Quote
