Low Cost Horizontal Machine Center for Sale Hmc50 | RFQ Sourcing Details
Cnc Machining Centers · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Product specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Cnc Machining Centers. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
U sage: Horizontal machining centers are suitable for complex machining of box type parts. During the machining process, cutting tools can be automatically exchanged, and milling, drilling, reaming, boring, reaming, and tapping of four surfaces can be carried out in one clamping.
Modern machine tools and control concepts, compact structural design ensure high efficiency and precision for processing single or small batch products.
T echnical specifications : Specifications Units HMC500 Table size mm 500*500 X axis travel mm 800 Y axis travel(spindle box lift) mm 650 Z axis travel(column front-rear move) mm 800 Table quantity - 1 T slot(number-width-pitch) - 5-18-100 Max.
worktable load kg 600 Distance between spindle nose and worktable center mm 150-950 Distance from spindle axis to table surface mm 100-750 Table indexing ° 1° *360 Spindle taper - BT40-150 Max.
spindle speed rpm 8000 Main motor power kw 11 Cutting feed speed m/min 1-10 X/Y/Z rapid traverse speed m/min 24/18/18 Guideway type - Linear guideway Tool magazine - Arm 24 Machine min.set unit mm 0.001 Positioning accuracy mm ±0.005 Repeat positioning accuracy mm ±0.003 B axis Indexing accuracy '' 10 B axis repetitive indexing accuracy '' 5 Machine Weight kg 9000 Overall dimension mm 4500*3100*3000 Detailed Photos
Low | Applications and Buyer Notes
Low is organized as a sourcing-ready Cnc Machining Centers reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time questio
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- CNC Machining CentersBased on visible page data; confirm exact value in the RFQ.
- Brand
- DechangcncBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- power
- kw 11 Cutting feed speed m/min 1-10 X/Y/Z rapid traverse speed m/min 24/18/18 GuBased on visible page data; confirm exact value in the RFQ.
- Weight
- kg 9000 Overall dimension mm 4500*3100*3000 Detailed PhotosBased on visible page data; confirm exact value in the RFQ.
- precision
- for processing single or small batch products. T echnicalBased on visible page data; confirm exact value in the RFQ.
- specifications
- Specifications Units HMC500 TableBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Machining Centers categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 10pcs Tnmg160404l R Cnc Lathe Turning Inserts Cermet Inserts Tnmg For SteelThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 4 Axis Small Cnc Milling Machine Vmc850 Vertical Machining Center Cnc Vertical Machining CenterThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 4 Multi Spindles 3 Heads Dsp Vacuum Table Mdf Cutting Furniture Cabinet Atc 3d Wood Working 1325 2This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Axis Cnc Vertical Machining Center Vmc Model Ysv 1060This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Axis Large High Perform Cnc Controller Vertical Milling Machining Center Vmc960This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Axis Vmc215 Small Mini Cnc Milling Machine Vertical Machining Center Cnc Vertical Machining CentThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Lathes And Turning categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Milling Drilling And Grinding categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Machine Suppliers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Lathe Exporters sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Machining Center Manufacturers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Tooling Fixtures And Accessories categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Ultra Precision High Speed Vertical Machining Center Vmc1160 Hot Sale CNC Milling Machine - CNC MachRequest QuoteChina Low Price Vertical Milling Machining Center Vmc1370 High-Quality CNC Milling Machine CenterRequest Quote

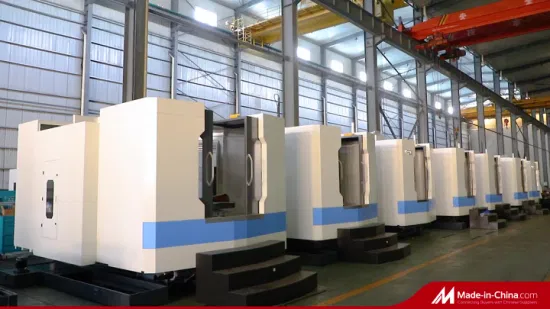

Hot Sale Hlc800 CNC Horizontal Machining Center Linear Guideway CNC Milling Machine - CNC Machine anRequest Quote
