China Made Universal Cylindrical Grinding Machine | RFQ Sourcing Details
Cylindrical Grinding Machines · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Product specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Cylindrical Grinding Machines. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
The Universal Cylindrical Grinding Machine is designed for grinding cylindrical or conical external surface with accuracy of IT5 and IT6. It is most suitable for tooling or repair workshop in small batch production. The longitudinal travel of worktable is controlled steplessly by hydraulic system or by handwheeel.
The infeed of wheelhead is carried out by hydraulic automatic periodic feed and also by handwheel. The rapid approach and withdrawal of wheelhead retracting of tailstock center lubrication of slideway and lead-screw are all hydraulically controlled.
Product Parameters M1420 M1432 M1440 Specifications Item M1420 M1432B M1440 OD grinding diameter Φ 8-200 Φ 8-320mm Φ 150-400mm ID grinding diameter Φ 13-100 Φ 30-100mm Φ 16-125mm Center height 135mm 180mm 220mm Workhead spindle speed 50. Hz:25-380 rpm stepless Max.
Travel of table 650mm/950mm 1100/1600/2100/3100mm 1000/1500mm Hydraulic transverse speeds 0.1-4 Max. Workpiece weight 50kg 150kg 150kg Grinding length External/Internal 500/125mm 1000,1500,2000,3000mm /150mm Swivel range of grinding wheel -5~+90 ° External wheel size Max. Φ 400x50x203mm Min.
Φ28 0x50x203mm Φ 400x50x203mm Φ5 00x50x203mm Internal wheel spindle rotating speed 16000rpm 10000/20000rpm Workhead and tailstock center Morse No.4 Morse No.4 Morse No.4 Total motor power 5.625 9kW 9kW
China | Applications and Buyer Notes
China is organized as a sourcing-ready Cylindrical Grinding Machines reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-ti
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- Cylindrical Grinding MachinesBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- power
- 5.625 9kW 9kW Packaging & ShippingBased on visible page data; confirm exact value in the RFQ.
- weight
- 50kg 150kg 150kg Grinding length External/Internal 500/125mm 1000,1500,2000,3000Based on visible page data; confirm exact value in the RFQ.
- diameter
- Φ 8-200 Φ 8-320mm Φ 150-400mm ID grindingBased on visible page data; confirm exact value in the RFQ.
- Specifications
- Item M1420 M1432B M1440 OD grindingBased on visible page data; confirm exact value in the RFQ.
- Product Parameters
- M1420 M1432 M1440Based on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Machining Centers categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 10pcs Tnmg160404l R Cnc Lathe Turning Inserts Cermet Inserts Tnmg For SteelThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 4 Axis Small Cnc Milling Machine Vmc850 Vertical Machining Center Cnc Vertical Machining CenterThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 4 Multi Spindles 3 Heads Dsp Vacuum Table Mdf Cutting Furniture Cabinet Atc 3d Wood Working 1325 2This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Axis Cnc Vertical Machining Center Vmc Model Ysv 1060This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Axis Large High Perform Cnc Controller Vertical Milling Machining Center Vmc960This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Axis Vmc215 Small Mini Cnc Milling Machine Vertical Machining Center Cnc Vertical Machining CentThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Lathes And Turning categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Milling Drilling And Grinding categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Machine Suppliers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cnc Lathe Exporters sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Machining Center Manufacturers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Tooling Fixtures And Accessories categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Precision Cylindrical Grinding Machine ME1432 M1440 ME1450 320mm, 500mm,630mm,800mm diameter - 2026Request Quote

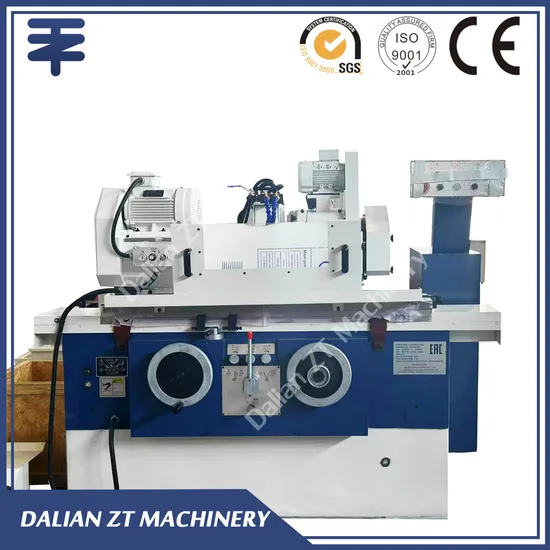

Precision Universal Cylindrical Grinding Machine for Large Workpieces - Cylindrical Grinding MachineRequest Quote

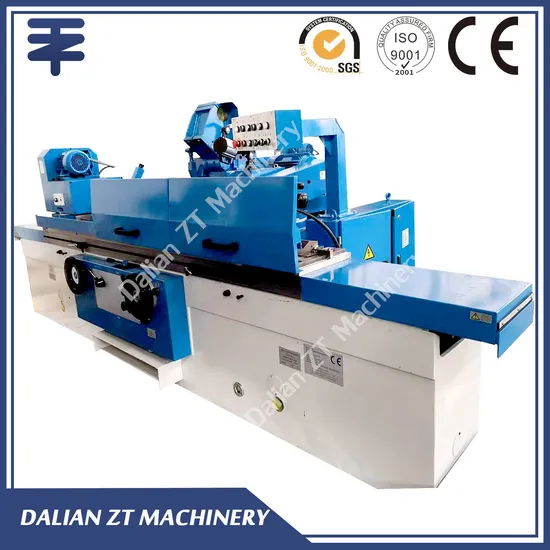

Conventional Universal Large Cylindrical Grinding Grinder Machine - Cylindrical Grinding Machine andRequest QuoteCoventional Large Cylindrical Grinding Grinder Machine M1363X5000 - Cylindrical Grinding Machine andRequest QuotePrecision Large Cylindrical Grinding Machine M1363X3000 for Industrial Use - Conventional Grinding MRequest QuoteConventional Universal Large Cylindrical Grinding Grinder Machine ME1450Ax1500 - Large Grindier andRequest QuoteCNCMillHub related sourcing paths
